1. Your BLOX site setup is complete, where your URLs will not change (or should only slightly change)
2. You have a Google GAM Small Business account created (preferably with no ad units yet created)

---

NOTE: This process is for Google GAM Small Business accounts only. If you are using GAM Premium, the ad units are automatically generated and you do not need to bulk import them.

---

Create "Ad Units" in Google GAM From URLs in BLOX

To simplify the relationship between BLOX and Google GAM Small Business, TownNews recommends using GAM's “Ad units” as the equivalent to BLOX URLs. Each URL on the BLOX site would be added to Google GAM as an ad unit. This set up gives sites extremely flexible targeting options, while allowing for ease-of-use at the same time.

To make the process of creating Ad Units in GAM easier, we created a special skin in BLOX that will generate a list of URLs, to be imported into GAM as ad units.

Create a New BLOX URL Which Will Use The GAM Skin

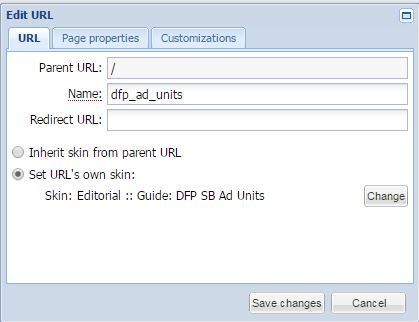

1. Create a new URL: GAM_ad_units
2. Set the URL's skin to the following:
   • Application Skin Guide: Ads: Google Ad Manager (flex)
3. Save Changes

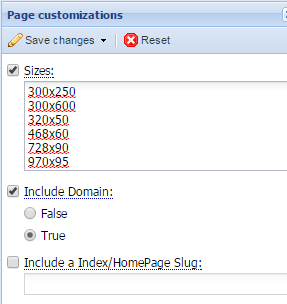

Update BLOX URL Page Customizations

1. Access the new URL's page customizations (either by going to the URL in the URL map, or via Design > Blocks and open page customizations for that URL).
2. Sizes: Enter a list of all your ad sizes that will exist on the entire site, one per line. It is important that all sizes are listed BEFORE the next step.
3. Go to Design / Blocks, and open the GAM_AD_UNITS URL.  In Advertising under Page Customizations, enter your GAM account information.
4. Include Domain: If your GAM setup will support multiple sites, it's best to check "Include domain", as this will allow you to sort and target ads on a per domain basis. If your GAM setup will only support one site, it's not required but we still recommend it as a best practice.
5. Include a Index/Homepage Slug: leave blank

After saving the settings above, you may notice that the main layout screen's message changes to include "Ok looks like we're setup for exporting. Press [Next]". Disregard this message, as the "Next" button is broken (a reported bug) and will be fixed or removed in a future release.

Create "Ad Units" Spreadsheet

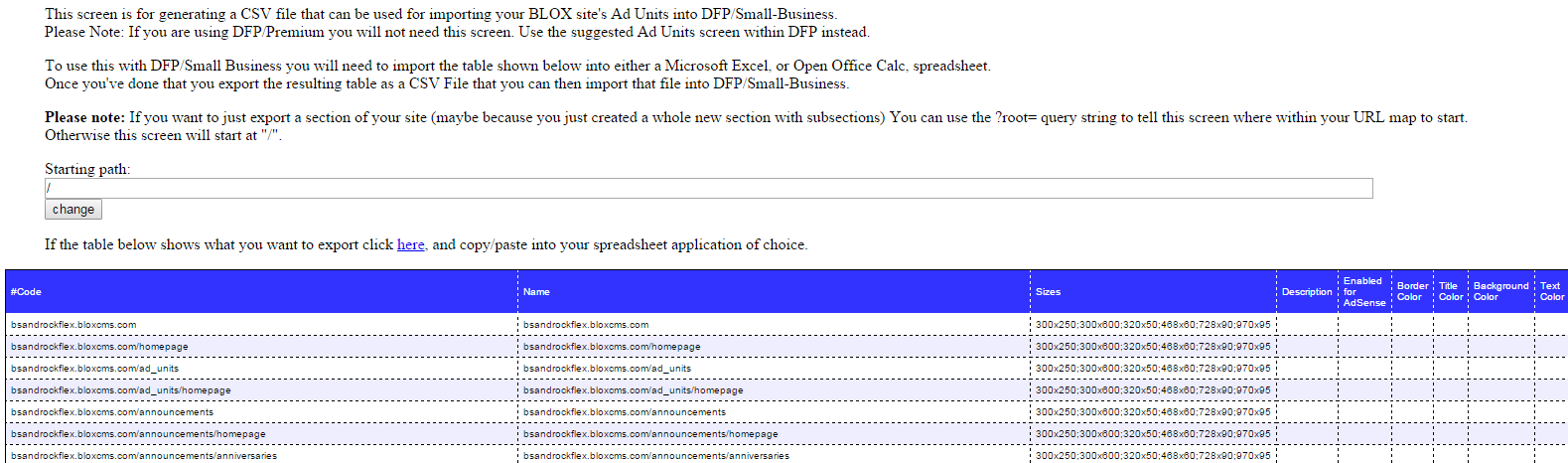

1. Launch a preview of the site and add /GAM_ad_units to the end of the URL
2. If everything is configured correctly, you should see a page showing instructions on how to create the CSV file. Follow the instructions to create the CSV file.

Importing "Ad Units" Spreadsheet into Google GAM

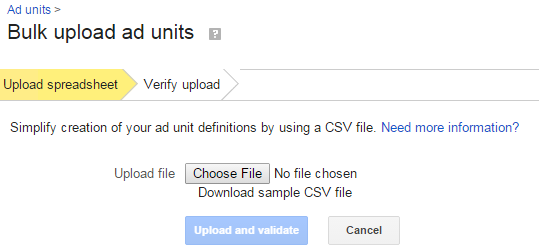

1. Within Google GAM's admin, go to Inventory / Ad Units
2. Click Bulk Upload New Ad Units
3. Click Choose File, browse to find your new .csv file, and click Upload and Validate

Google will evaluate the file and may give warnings or errors. You'll need to fix those errors (duplicates need to be removed, blank line items need to be removed, etc.)

Create "Placements" in Google GAM

Now that the ad units are uploaded, you'll want to create "placements", or groups of ad units, to make maintenance and targeting easier.  A placement may contain any ad units desired. For example, a "Sports" placement may contain ad units for /sports and all sub-URLs of Sports.

If you are selling the index page (ex. main sports section page) and asset pages separately, you may want one placement to target the Sports section page, and another placement to target the Sports asset pages.

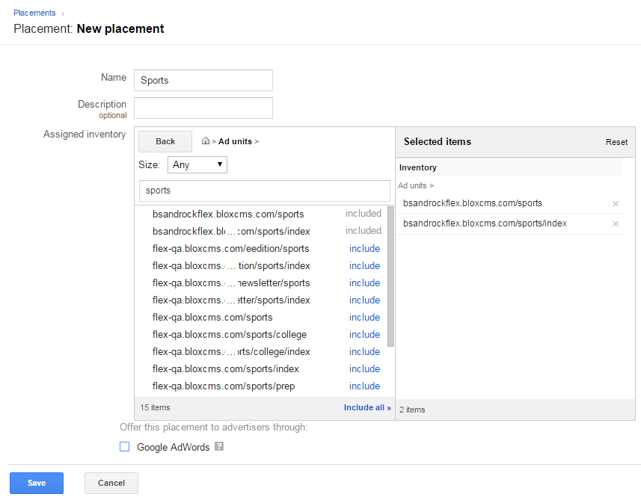

Create a New Placement

1. Go to Inventory / Placements
2. Click New Placement
3. Name: (what you're targeting), ex. "Sports"
4. Search for the ad units you want to include and click Include to add each ad unit (BLOX URL) for the placement
5. Uncheck Google AdWords (recommended if not using placement targeting Google's AdWords Advertisers)
6. Click Save

Create "Custom Targeting" in Google GAM

In this setup, we are using custom targeting in order to target specific ad locations on a page. BLOX is utilizing a targeting value of "pos" (stands for "position"), as a custom targeting variable.

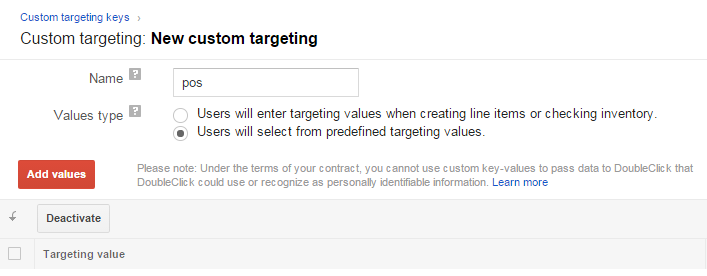

Create a New Custom Targeting Value Key

1. Go to Inventory / Custom Targeting
2. Click New Key
3. Name: enter pos
4. Values type: select Users Will Select From Predefined Targeting Values
   (This option is useful so that users don't have to remember or type in the various position codes)

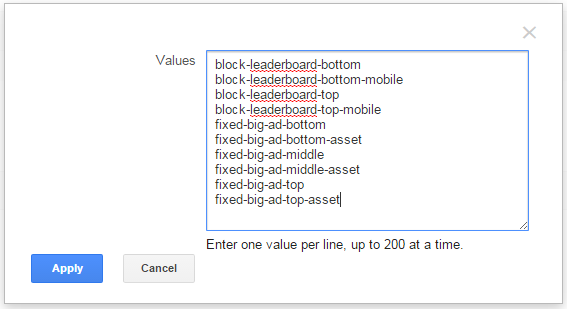

1. Click Add Values
2. If using BLOX Fixed Ad units, enter values that match fixed ad region names that you plan to use
3. If using BLOX Ad Blocks, enter values that match block ad region names (ex. block-leaderboard-top, block-leaderboard-top-mobile), OR values that make sense to your organization (ex. "right1_atf_300x250", "leaderboard-top_728x90", etc.)
4. Click Apply

Custom Targeting By Page

When you create an ad order you can now target the ad based on the custom criteria set up in GAM. Templates will now automatically generate a GAM custom targeting key with values depending on the page you are on:

• / - homepage
• section front - index
• asset page - asset
• editorial page - app-editorial
• calendar page - app-calendar
• 404 page - 404

These key-value pairs can be targeted in GAM by setting up custom targeting in Inventory / Custom Targeting.  Add the key of page.  Then add the values above.

Duplicate "Line Items" in Google GAM

Google GAM's Line item is similar to a single element of an order. An "Order" in GAM is a collection of line items.

Ex. The advertiser for an order might be Apple Inc. The order itself might be an iPad campaign. Each line item might be for a different iPad product (iPad 2, iPad Mini, iPad Air, etc.)

In order for ads to move to the new system with minimal downtime, we recommend duplicating your line items, and within the duplicates, removing old ad unit, placement and custom criteria information, and adding new ones.

---

NOTE: This step is only required for sites already using GAM. If you have a new installation of GAM, skip this step. Adding a "pos" custom target to an existing order (when a custom target is not used in the current system) will cause the existing ads to go offline.

---

Duplicate Line Item

1. Go to Orders / Line items
2. Check the boxes next to the line items you need to duplicate (NOTE: you can duplicate multiple line items at once as long as the Advertiser is the same)
3. Above the list of line items, click More Actions, and select Copy to...
4. Select a copy option: Copy Line Item and Creatives
5. The line items will be copied to: The Same Order
6. Click Ok

Update The Duplicate (Copy) Line Item

1. Click on the duplicate line item
2. In the Add Targeting section at the bottom of the page, remove Ad units, Placements and custom criteria (if applicable)
3. Include new Ad units, Placements and/or custom criteria

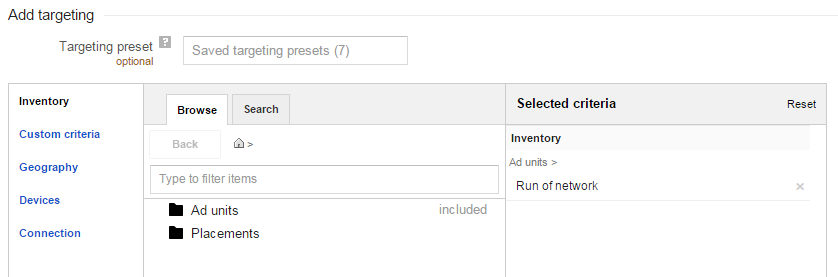

How Do I create "ROS" (Run of Site) Ads?

When creating a new line item in GAM, the Ad units will default to "Run of network". Because the ad units imported from BLOX URLs consist of the full domain name as part of the ad unit, a placement (group of ad units) which targets all URLs of the site is recommended.

Troubleshooting Tips

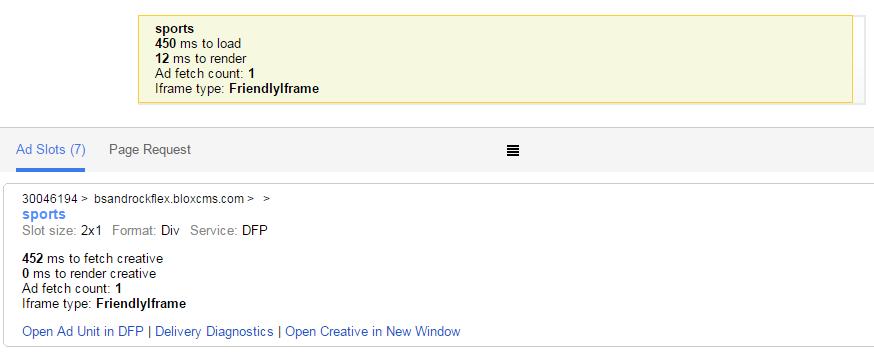

Google Console

If your network uses Google Publisher Tags (GPT), you can use an on-screen debugging tool called the Google Publisher Console to troubleshoot delivery problems. The console checks your page for many common JavaScript tagging errors, identifies all of the ad units and creatives on the page, and helps you visualize the ad request behavior of a web page.

Append ?google_force_console or ?googfc to your page's URL

For example, if your page is located at www.domain.com/sports, you'd modify the URL to www.domain.com/sports?googfc

Troubleshooting Fixed Ad Positions

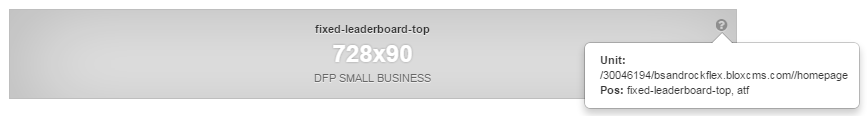

By clicking on the (?) icon in the top right corner of any fixed ad position in the Blocks admin, you will be presented with the information that the particular ad is looking for in terms of the ad unit and the "pos" custom targeting value(s).

The code created by GAM will need to match in order to show the ad.

As you change page customization settings under "Advertising", the help text will update to reflect what the ad position is expecting.
